| CODE | PART NAME | CODE | PART NAME |

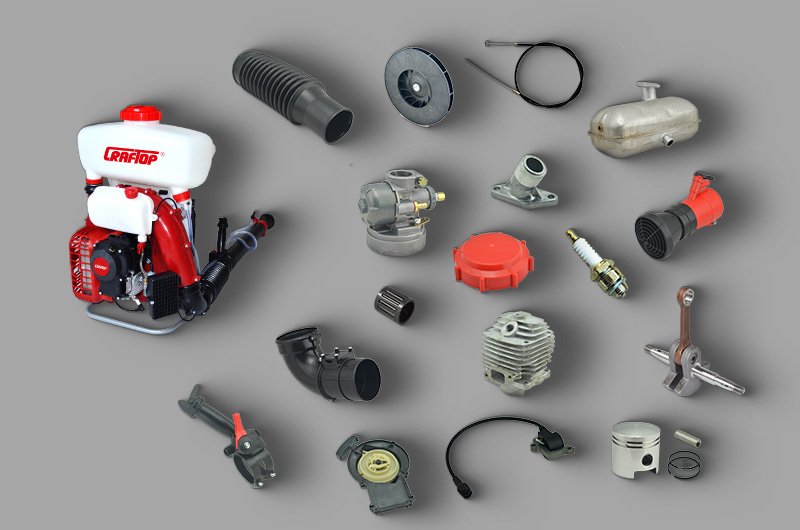

| SOLO Sprayer | |||

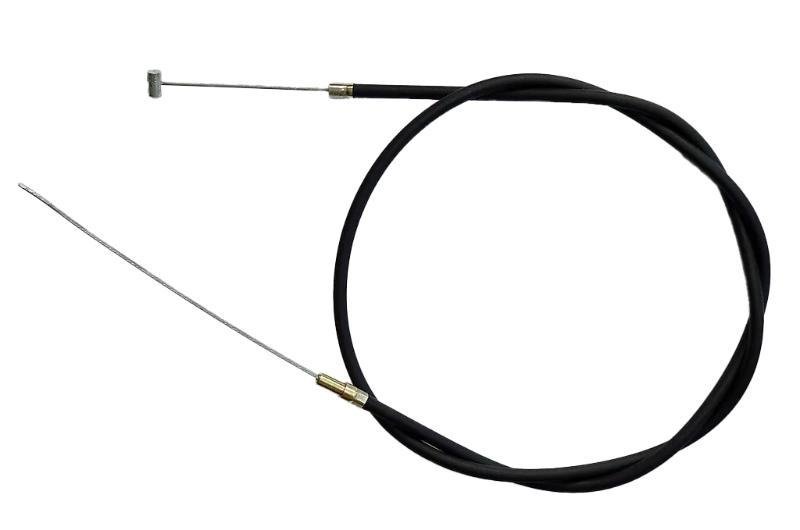

| 1 | Accelerograph Line | 42 | Inlet Plunger Nut |
| 2 | Carburetor Cover / Filter | 43 | Front Cover Of Fan Rind |

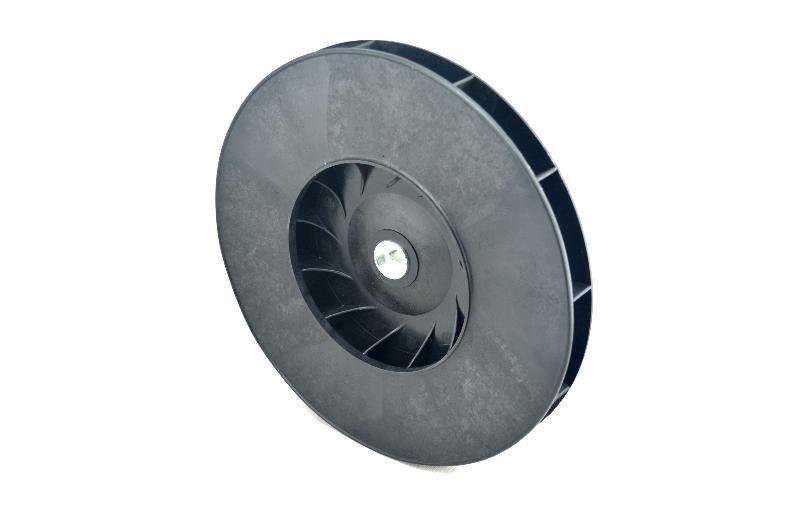

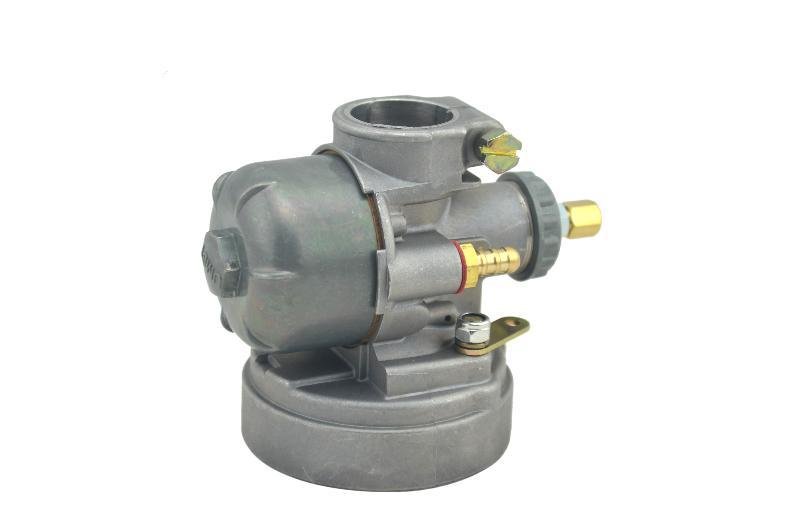

| 4 | Carburetor | 44 | Impeller (Fan) |
| 4 (9) | Carburetor Block | 45 | Back Cover Of Fan Rind |
| 4 (11) | Oil Dobber | 46 | Fan Rind Screw |
| 4 (10) | Needle Valve | 47 | Fan Rind Support |
| 79 | Carburetor Gasket | 48 | Syphon |

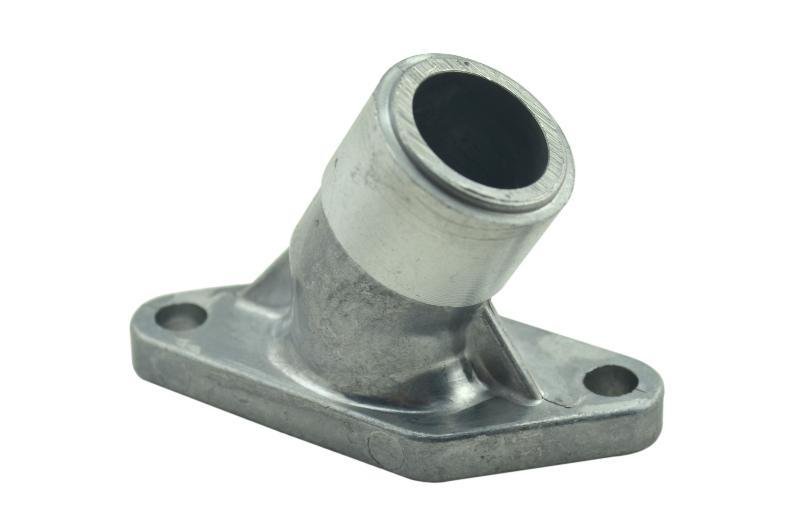

| 5 | Coupling Flange | 49 | Snap Ring Of Tube |
| 6 | Flange Adiabatic Washer | 50 | Tube |
| 7 | Flange Parer Gasket | 51 | Small Snap Ring Of Tube |

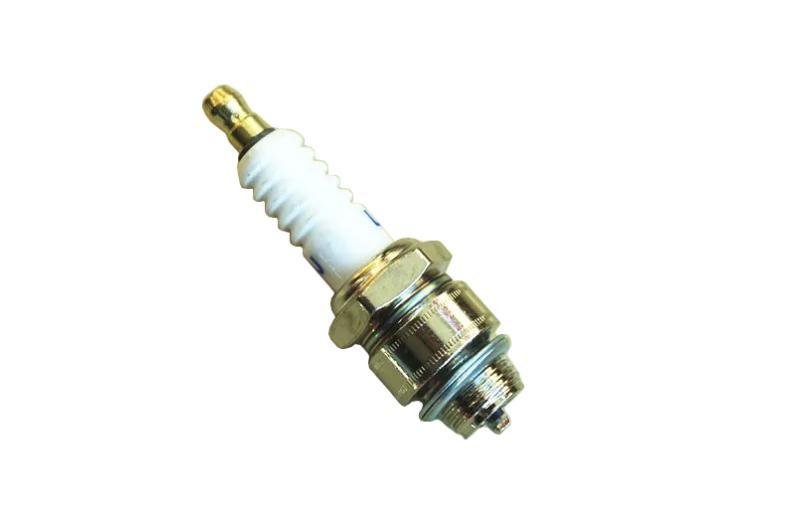

| 8 | Spark Plug | 52 | Water Pipe |
| 9 | Bolt For Engine Block | 53 | Inlet Of Water Pipe |
| 11 | Flange Bolt | 54 | Inlet Nut Of Water Pipe |
| 12 | Supprot For Engine Block | 55 | Water Valve |
| 13 | Paper Gasket For Engine Block | 56 | Pipe |

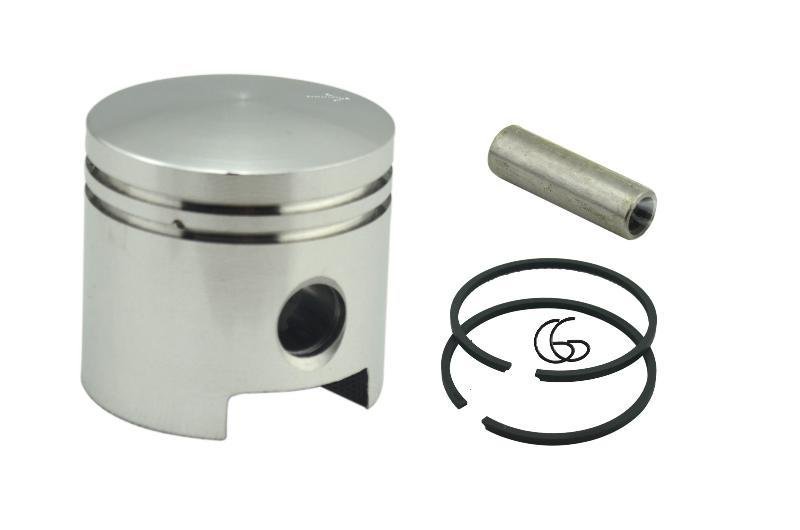

| 14 | Piston | 57 | Red Spout |
| 15 | Piston Ring | 58 | Black Spout |
| 16 | Piston Pin | 59 | Cap Of Medicine Tank |
| 18 | Snap Ring Of Piston Pin | 60 | Cap Washer Of Medicine Tank |

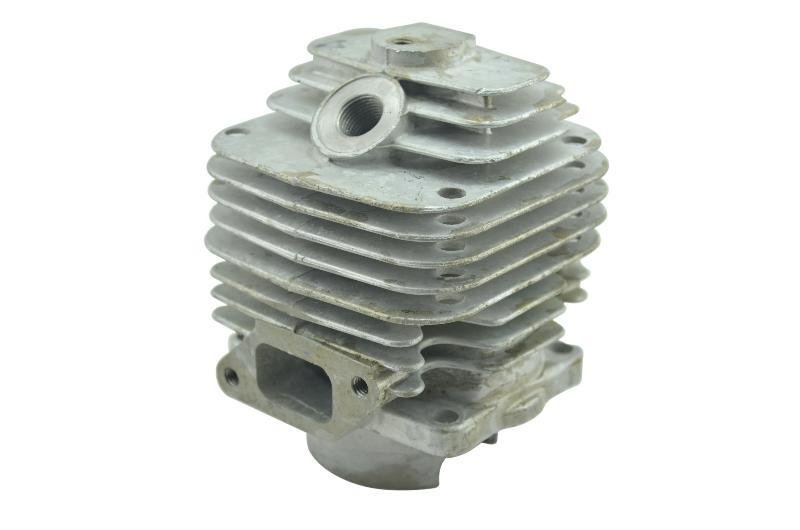

| 10, 14, 15, 16, 18 | Cylinder Assy | 61 | Filter Gauze |

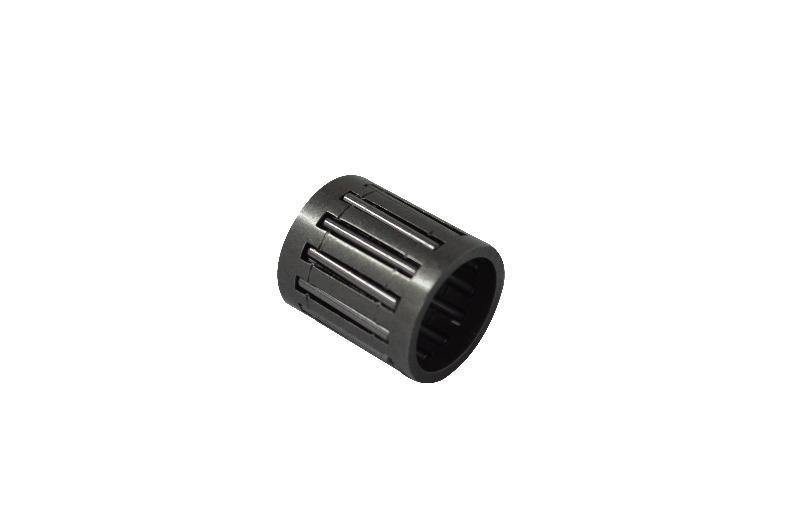

| 17 | Neddle Roller / Top Bearing | 62 | Water Tank |
| 19 | Silencer Gasket | 63 | Drain Plub |

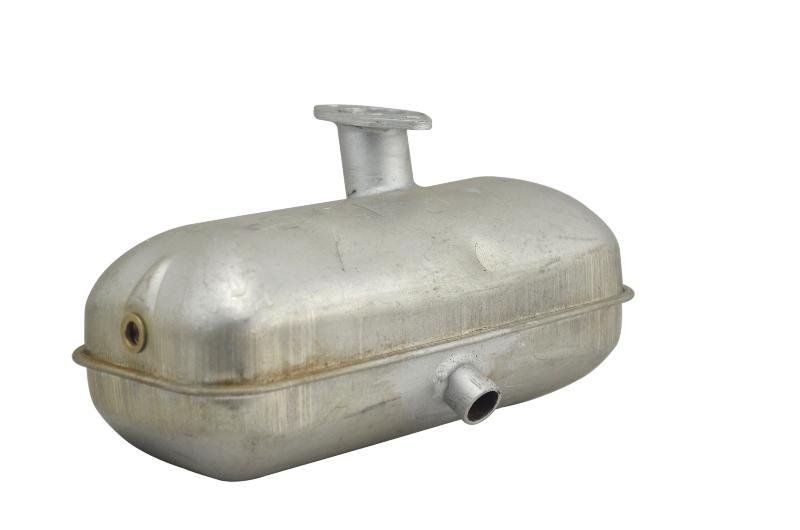

| 20 | Silencer | 64 | Washer Of Drain Plug |
| 21 | Silencer Cover | 65 | Inlet Plug |
| 22 | Silencer Support 1 (long) | 66 | Drain Bolt |
| 23 | Silencer Support 2 (short) | 67 | Gallus |
| 24 | Silencer Nut | 68 | Gallus Clasp |
| 25 | Silencer Bolt | 69 | Back Cushion |
| 26 | Front Of Crankcase | 70 | Clamp Of Back Cushion |
| 27 | Back Of Crankcase | 71 | Cap Of Fuel Tank |

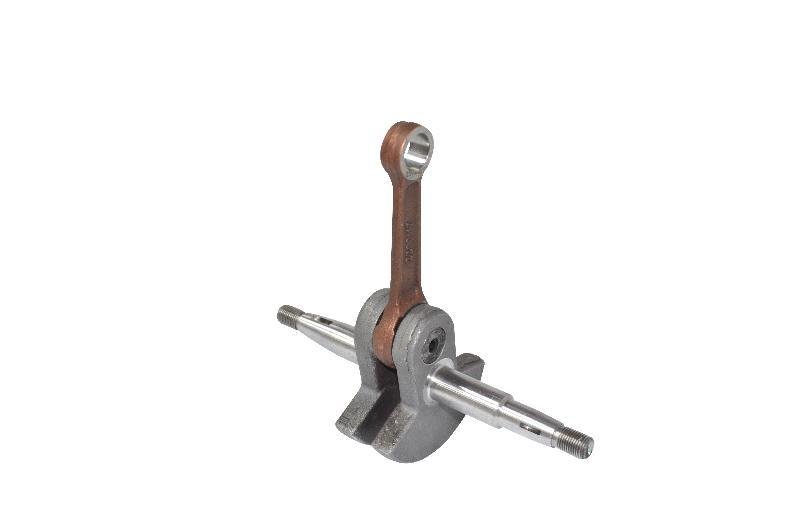

| 30 | Cankshaft | 72 | Cap Washer Of Fuel Tank |
| 31 | Oil Seal | 73 | Fuel Tank |
| 32 | Cell Key | 74 | Cap Washer |
| 33 (1) | Startor | 75 | Nut Of Oil Valve |
| 34 (1) | Rotor / Flywheel | 76 | Oil Valve |
| 35 | Spring Of Pressure Cap | 77 | Oil Pipe |

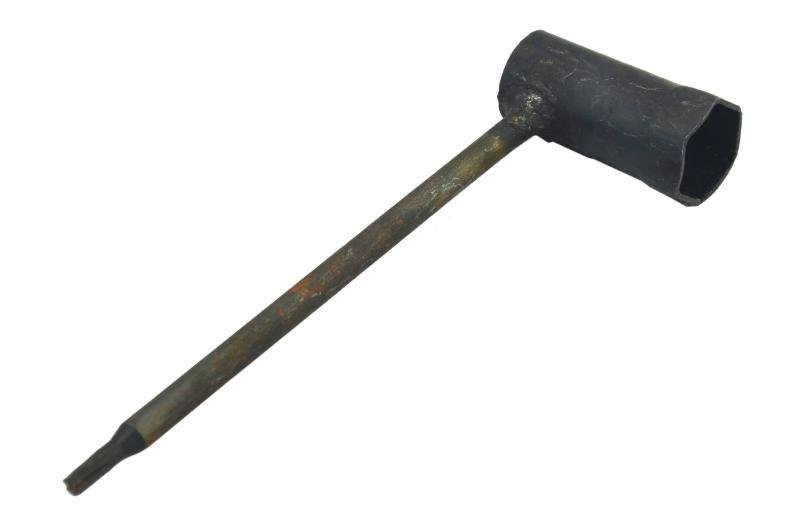

| 36 | Pressure Cap | 78 | Plug Spanner/Spanner For Spark Plug |
| 39 | Starter Cover | 80 | Sarter Kit Jack Pin |

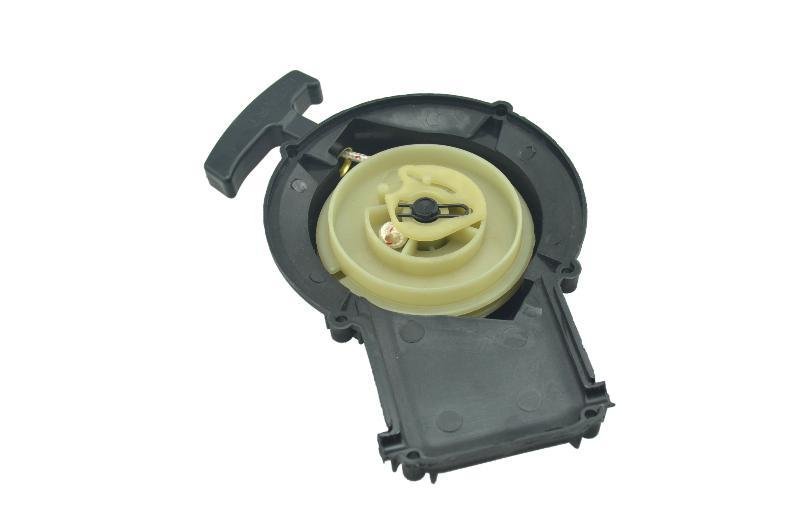

| 40 (1) | Starter | 0 | 423 Engine of Sprayer |
| 41 | Snap Ring Of Inlet Plunger | ||
Por favor, indique el modelo de su máquina en su consulta y mencione palabras clave como partes de motosierra, partes de desbrozadora, partes de fumigadora/polinizadora, partes de soplador de hojas, partes de cortasetos, partes de bomba de agua, partes de generador, partes de motor, partes de cortacésped, etc.
Valoramos la tierra cultivada tanto como el usuario y compartimos la perspectiva de una solución respetuosa con el medio ambiente, que es una de nuestras muchas directrices.
